风华工字电感的封装型号VL系列
1、订货代码 HOW TO ORDER
VL U 0608 － 100 K F
A B C D E F
A:
|
产 品 类 别
Product type
|
|
VL
|
立式固定电感器
Vertical fixed inductor
|
B:
|
封装形式
Envelopment configuration
|
|
U
|
UL套管
UL sleeve
|
|
B
|
树脂包封
Resin
|
C:
|
尺 寸
Dimensions（mm）
|
|
类型
Type
|
外径
Cmax
|
体长
Amax
|
|
0304
|
Ф4. 0
|
5.0
|
|
0406
|
Ф5.0
|
7.0
|
|
0608
|
Ф7.0
|
9.5
|
|
0810
|
Ф9.0
|
11.0
|
|
0912
|
Ф10.0
|
13.0
|
|
1012
|
Ф11.0
|
13.0
|
D:
|
标称电感量
Nominal iductance (μH)
|
|
前两位数字为有效数字，后一位数字表示零的个数。
The first two digits are significant, and the third digit is number of zeros.
*例如 For example：
101=100μH
5R6=5.6μH
R47=0.47μH
|
E:
|
感量偏差
Tolerance
|
|
J
|
±5.0%
|
|
K
|
±10%
|
|
M
|
±20%
|
|
N
|
±30%
|
F：
|
包装方式
Packaging style
|
|
F
|
散包装
Bulk
|

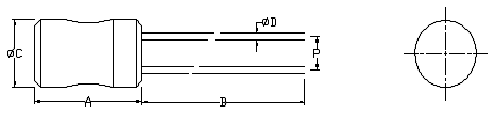

2、构造 (外形及尺寸) STRUCTURE (EXTERNAL DIMENSIONS)
|
类型 Type
|
尺 寸 Dimensions（mm）
|
|
ΦC(max)
|
A(max)
|
B(min)
|
ΦD
|
P
|
|
0304
|
4.0
|
5.0
|
5.0
|
0.50±0.05
|
2.0±1.0
|
|
0406
|
5.0
|
7.0
|
15.0
|
0.50±0.05
|
2.0±1.0
|
|
0608
|
7.0
|
9.5
|
15.0
|
0.60±0.05
|
2.5±1.0
|
|
0810
|
9.0
|
11.0
|
15.0
|
0.60±0.05
|
3.5±1.5
|
|
0912
|
11.5
|
13.0
|
15.0
|
0.65±0.05
|
5.0±1.5
|
|
1012
|
12.5
|
13.0
|
15.0
|
0.65±0.05
|
6.0±1.5
|
# 特殊要求的产品可以根据客户要求生产
The products can be customized according to customer requirement.

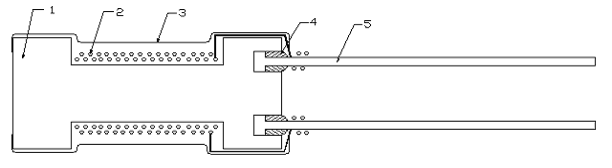

3、产品结构 STRUCTURE
|
序号
NO.
|
部件名称 Parts name
|
材料名称Material name
|
|
1
|
磁芯 core
|
铁氧体 Ferrite
|
|
2
|
漆包线 Wire
|
漆包铜线 Enamelled wire
|
|
3
|
封装形式
Envelopment configuration
|
树脂/UL管 Resin /UL Sleeve
|
|
4
|
接脚剂 Adhesive
|
接脚树脂 Resin
|
|
5
|
引脚 Leading
|
镀锡铜线 Tinned copper wire
|
4、 电性能参数及测试条件
ELECTRICAL CHARACTERISTICS & TEST CONDITIONS
VLU0406系列
VLU0406SERIES
|
型号规格
Part No.
|
电感值
Inductance（μH）
|
直流电阻
DC
Resistance(Ω) (±20%)
|
额定电流
Rated
Current(mA)(MAX)
|
印字
Marking
|
|
VLU0406-6R8M
|
6.8
|
0.035
|
1700
|
6R8
|
|
VLU0406-100K
|
10
|
0.055
|
1400
|
100
|
|
VLU0406-120K
|
12
|
0.067
|
1300
|
120
|
|
VLU0406-150K
|
15
|
0.077
|
1200
|
150
|
|
VLU0406-180K
|
18
|
0.095
|
1000
|
180
|
|
VLU0406-220K
|
22
|
0.123
|
950
|
220
|
|
VLU0406-270K
|
27
|
0.155
|
820
|
270
|
|
VLU0406-330K
|
33
|
0.185
|
760
|
330
|
|
VLU0406-390K
|
39
|
0.225
|
630
|
390
|
|
VLU0406-470K
|
47
|
0.250
|
600
|
470
|
|
VLU0406-560K
|
56
|
0.348
|
520
|
560
|
|
VLU0406-680K
|
68
|
0.371
|
490
|
680
|
|
VLU0406-820K
|
82
|
0.477
|
350
|
820
|
|
VLU0406-101K
|
100
|
0.600
|
280
|
101
|
|
VLU0406-121K
|
120
|
0.736
|
260
|
121
|
|
VLU0406-151K
|
150
|
0.900
|
240
|
151
|
|
VLU0406-181K
|
180
|
1.034
|
220
|
181
|
|
VLU0406-221K
|
220
|
1.046
|
210
|
221
|
|
VLU0406-271K
|
270
|
1.680
|
200
|
271
|
|
VLU0406-331K
|
330
|
2.160
|
180
|
331
|
|
VLU0406-391K
|
390
|
2.430
|
170
|
391
|
|
VLU0406-471K
|
470
|
2.675
|
160
|
471
|
|
VLU0406-561K
|
560
|
3.580
|
130
|
561
|
|
VLU0406-681K
|
680
|
3.755
|
120
|
681
|
|
VLU0406-821K
|
820
|
5.000
|
110
|
821
|
|
VLU0406-102J
|
1000
|
6.880
|
90
|
102
|
|
VLU0406-122J
|
1200
|
8.135
|
88
|
122
|
|
VLU0406-152J
|
1500
|
9.480
|
85
|
152
|
|
VLU0406-202J
|
2000
|
13.08
|
80
|
202
|
# 特殊要求的产品可以根据客户要求生产
The products can be customized according to customer requirement.
VLU0608 系列
VLU0608 SERIES
|
型号规格
Part No.
|
电感值
Inductance（μH）
|
直流电阻
DC
Resistance(mΩ)(±20%)
|
额定电流
Rated
Current(mA)(MAX)
|
印字
Marking
|
|
VLU0608-1R0N
|
1.0
|
7.3
|
5000
|
1R0
|
|
VLU0608-1R2N
|
1.2
|
8.6
|
4700
|
1R2
|
|
VLU0608-1R5N
|
1.5
|
8.6
|
4200
|
1R5
|
|
VLU0608-1R8N
|
1.8
|
9.4
|
3800
|
1R8
|
|
VLU0608-2R2N
|
2.2
|
10.6
|
3600
|
2R2
|
|
VLU0608-2R7N
|
2.7
|
12.6
|
3400
|
2R7
|
|
VLU0608-3R3N
|
3.3
|
13.9
|
3200
|
3R3
|
|
VLU0608-3R9N
|
3.9
|
14.7
|
3000
|
3R9
|
|
VLU0608-4R7M
|
4.7
|
16.5
|
2800
|
4R7
|
|
VLU0608-5R6M
|
5.6
|
22.4
|
2500
|
5R6
|
|
VLU0608-6R8M
|
6.8
|
24.0
|
2400
|
6R8
|
|
VLU0608-8R2M
|
8.2
|
26.5
|
2200
|
8R2
|
|
VLU0608-100K
|
10
|
31.0
|
1870
|
100
|
|
VLU0608-120K
|
12
|
36.0
|
1720
|
120
|
|
VLU0608-150K
|
15
|
50.0
|
1550
|
150
|
|
VLU0608-180K
|
18
|
55.0
|
1420
|
180
|
|
VLU0608-220K
|
22
|
63.0
|
1280
|
220
|
|
VLU0608-270K
|
27
|
74.0
|
1130
|
270
|
|
VLU0608-330K
|
33
|
90.0
|
1000
|
330
|
|
VLU0608-390K
|
39
|
110
|
990
|
390
|
|
VLU0608-470K
|
47
|
130
|
910
|
470
|
|
VLU0608-560K
|
56
|
150
|
780
|
560
|
|
VLU0608-680K
|
68
|
190
|
760
|
680
|
|
VLU0608-820K
|
82
|
220
|
650
|
820
|
|
VLU0608-101K
|
100
|
260
|
590
|
101
|
|
VLU0608-121K
|
120
|
320
|
520
|
121
|
|
VLU0608-151K
|
150
|
460
|
500
|
151
|
|
VLU0608-181K
|
180
|
530
|
480
|
181
|
|
VLU0608-221K
|
220
|
590
|
410
|
221
|
|
VLU0608-271K
|
270
|
800
|
360
|
271
|
|
VLU0608-331K
|
330
|
890
|
330
|
331
|
|
VLU0608-391K
|
390
|
1200
|
300
|
391
|
|
VLU0608-471K
|
470
|
1300
|
280
|
471
|
|
VLU0608-561K
|
560
|
1500
|
260
|
561
|
|
VLU0608-681K
|
680
|
2000
|
240
|
681
|
|
VLU0608-102J
|
1000
|
2700
|
170
|
102
|
|
VLU0608-122J
|
1200
|
3500
|
160
|
122
|
|
VLU0608-152J
|
1500
|
4200
|
150
|
152
|
|
VLU0608-202J
|
2000
|
6900
|
120
|
202
|
# 特殊要求的产品可以根据客户要求生产
The products can be customized according to customer requirement.
VLU0810 系列
VLU0810 SERIES
|
型号规格
Part No.
|
电感值
Inductance（μH）
|
直流电阻
DC
Resistance(Ω)(±20%)
|
额定电流
Rated
Current(mA)(MAX)
|
印字
Marking
|
|
VLU0810-100K
|
10
|
0.022
|
3600
|
100
|
|
VLU0810-120K
|
12
|
0.026
|
3100
|
120
|
|
VLU0810-150K
|
15
|
0.039
|
2400
|
150
|
|
VLU0810-180K
|
18
|
0.043
|
2300
|
180
|
|
VLU0810-220K
|
22
|
0.047
|
2300
|
220
|
|
VLU0810-270K
|
27
|
0.054
|
2200
|
270
|
|
VLU0810-330K
|
33
|
0.061
|
2200
|
330
|
|
VLU0810-390K
|
39
|
0.067
|
2200
|
390
|
|
VLU0810-470K
|
47
|
0.077
|
2000
|
470
|
|
VLU0810-560K
|
56
|
0.084
|
1900
|
560
|
|
VLU0810-680K
|
68
|
0.105
|
1800
|
680
|
|
VLU0810-820K
|
82
|
0.125
|
1600
|
820
|
|
VLU0810-101K
|
100
|
0.172
|
1300
|
101
|
|
VLU0810-121K
|
120
|
0.217
|
1200
|
121
|
|
VLU0810-151K
|
150
|
0.280
|
1100
|
151
|
|
VLU0810-181K
|
180
|
0.320
|
1000
|
181
|
|
VLU0810-221K
|
220
|
0.360
|
900
|
221
|
|
VLU0810-271K
|
270
|
0.442
|
830
|
271
|
|
VLU0810-331K
|
330
|
0.506
|
750
|
331
|
|
VLU0810-391K
|
390
|
0.645
|
670
|
391
|
|
VLU0810-471K
|
470
|
0.846
|
580
|
471
|
|
VLU0810-561K
|
560
|
0.943
|
550
|
561
|
|
VLU0810-681K
|
680
|
1.270
|
500
|
681
|
|
VLU0810-821K
|
820
|
1.441
|
460
|
821
|
|
VLU0810-102J
|
1000
|
1.690
|
410
|
102
|
|
VLU0810-122J
|
1200
|
1.800
|
330
|
122
|
|
VLU0810-152J
|
1500
|
2.650
|
300
|
152
|
|
VLU0810-202J
|
2000
|
3.100
|
290
|
202
|
|
VLU0810-222J
|
2200
|
3.670
|
260
|
222
|
|
VLU0810-302J
|
3000
|
4.800
|
240
|
302
|
|
VLU0810-332J
|
3300
|
5.140
|
230
|
332
|
# 特殊要求的产品可以根据客户要求生产
The products can be customized according to customer requirement.
5、 包装方式&数量 PACKAGING STYLE & QUANTITY
|
包装方式
Packaging style
|
散包装Bulk
|
|
包装数量Quantity
|
0304/0406
|
500 pcs
|
|
0608/0810/
0912/1012
|
200 pcs
|
# 可根据用户需求包装
Packaging according to customer’s requirement
